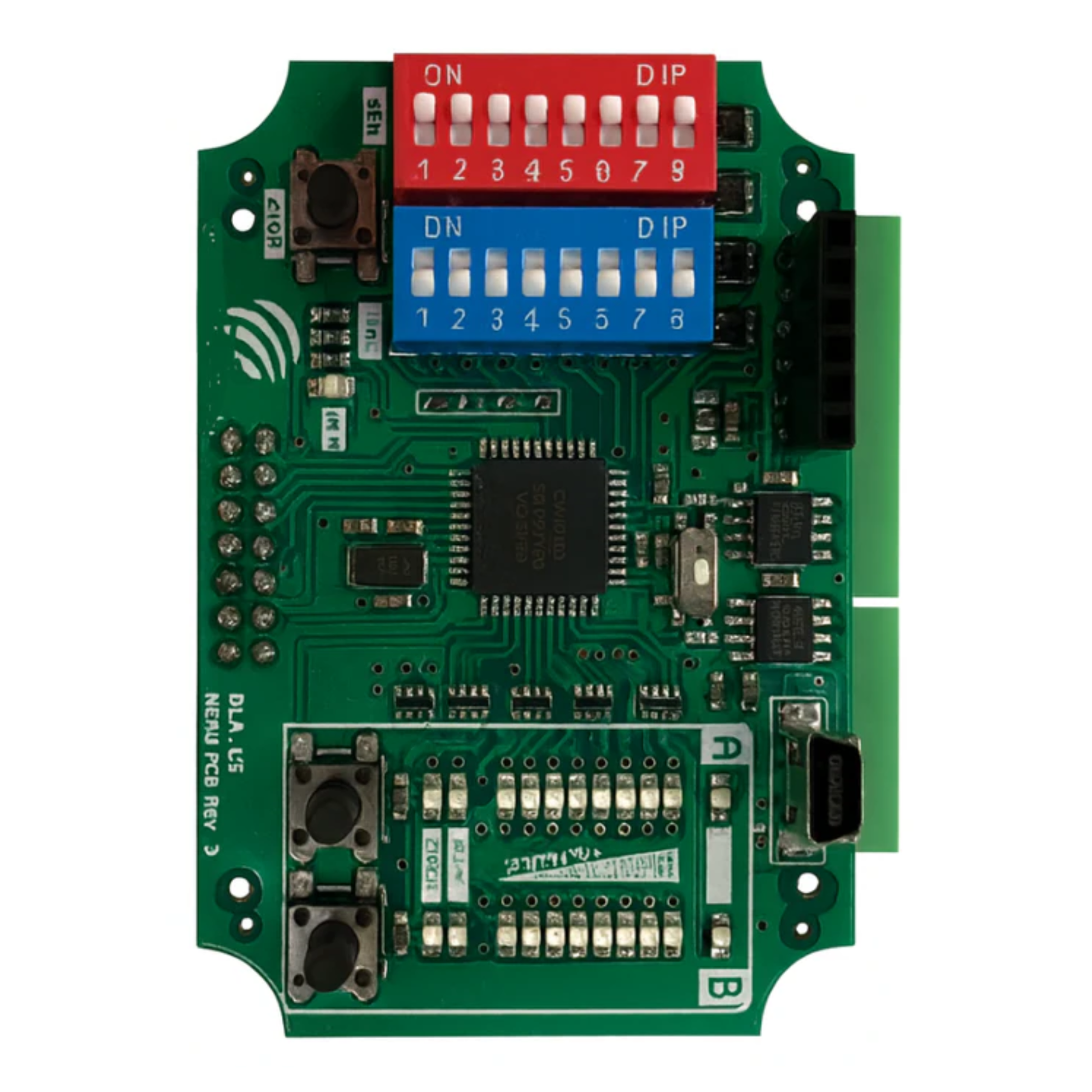

Dual lane loop card with software.

Single or Dual Lane Loop Controller

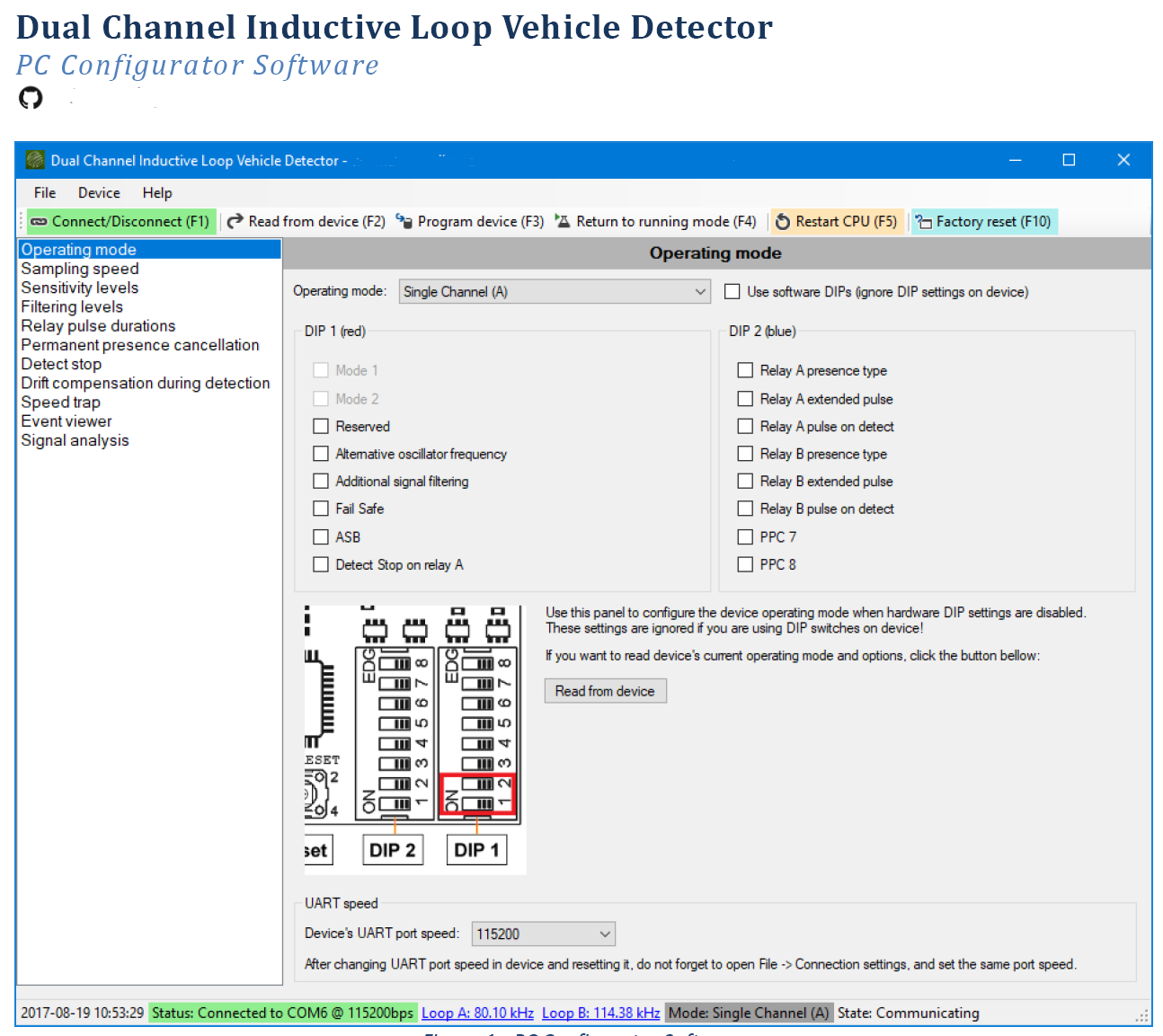

Supplied with configuration software, allowing full remote access and control of loop parameters.
Supports both single and dual-lane operation with flexible mode selection and diagnostics via PC interface.
The software is license-free and included at no additional cost.

Technical Specifications (Summary)

• Modes: 4 (Single, Dual, Directional, Speed Trap)

• Tuning: Automatic

• Detection: Presence / Pulse

• Presence Time & Pulse: Adjustable, 100 ms / 500 ms

• Filtering: 2 levels (NORMAL / HIGH)

• Loop Inductance: 20–1000 µH

• Frequency Range: 20–145 kHz (3 presets: LOW, MED, HIGH)

• Sensitivity: Up to 0.0025% Δf/f, 8 levels

• Detection Speed: From 10 ms

• Startup Time: ~1 sec/channel

• Power Supply: 12–40 V DC / 9–28 V AC (~0.02 A @ 12 V)

• Temperature: -35°C to +120°C

• Protection: Galvanic isolation & lightning protection

• Size: 11.5 × 6 cm
